7 automatic numbering and perforating machine XHDM570 , printer numbering machine , perforating machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Offset Printer
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
China (Mainland)
Brand Name:
XSHEEN
Model Number:
XHDM570
Usage:
Paper Printer
Automatic Grade:
Automatic
Voltage:
220V
Gross Power:
750w
Dimensions(L*W*H):
1780X935X1120mm
Weight:
380KGS
product name:
numbering and perforating machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden carton
Port
shanghai
Lead Time :
within 5 workdays

Specifications

XHDM570 automatic numbering and perforating machine is widely used in the factory

automatic numbering and perforating machine XHDM570 , printer numbering machine , perforating machine



Features of numbering and perforating machine:

1. Lateral and Vertical Perforation can be done at the same time;

2. Perfect Numbering Position & Legible Print with resin plate printing;

3. Numbering Speed up to 8,000 sheets per hour;

4. LCD computer controlling system is optional

5. Brand Parts: France Components (Schneider) & Japanese Bearings (NHK);

6. Oil Free Vacuum Pump adopts Japanese Technology;

7. Positive Limitation Protection is adopted to make sure safe operation;

8. Automatic Powdering & Blower system;

9. High quality Feeding Rubber-tired & Double Sheets Detection Device;

10. Chrome plated Technology and Stainless Steel Material are used to protect the roller



Technical data:

Model

XHDM480

XHDM570

XHDM630

Max. Paper Size

470x360mm

560x400mm

620x440mm

Min. Paper Size

180x150mm

Paper Weight

28-250gsm

Printing Speed

2000-8000 sheets/hour

Ink Roller

6 rollers(ink form rollers: 2pcs)

Number capacity:

Lateral: 7 row x 7 column=49

Vertical: 5 row x 8 column=40

Lateral: 7 row x 8 column=56

Vertical: 5 row x 10 column=50

Lateral: 7 row x 9 column=63

Vertical: 5 row x 11 column=55

Perforation

Min. space between lateral perforating knives: 10mm

Min. space between vertical perforating knives: 30mm

Power for main motor

0.75KW

0.75KW

1.5KW

pump motor power

0.75KW

Power Supply

220V/50HZ

Dimensions

1780x935x1120mm

1900x1020x1120mm

2060x1150x1120mm

Net Weight

280kg

320kg

370kg







Operation video link :

http://www.youtube.com/watch?v=hEMNE5yjAZk

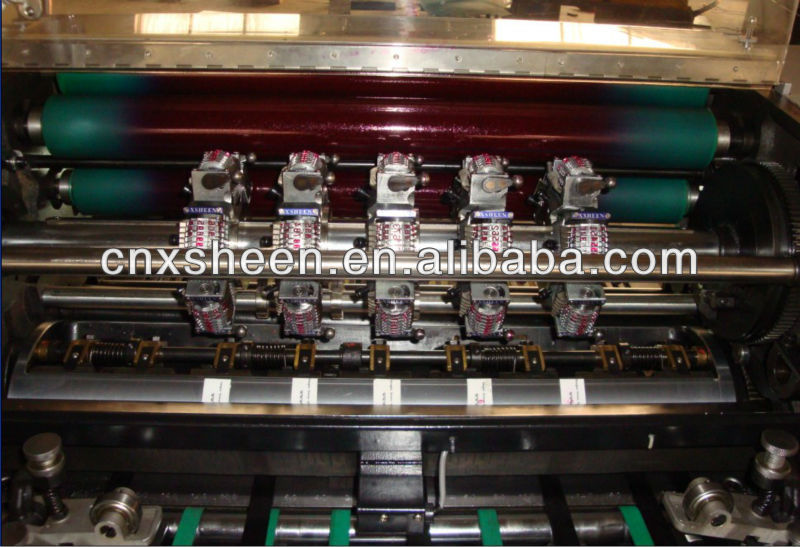

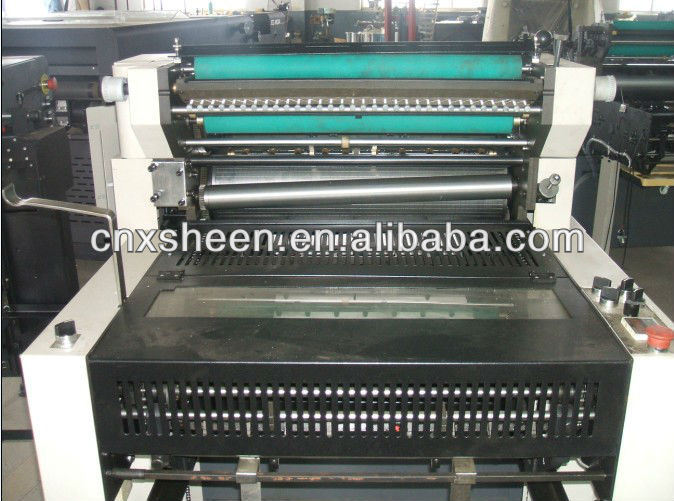

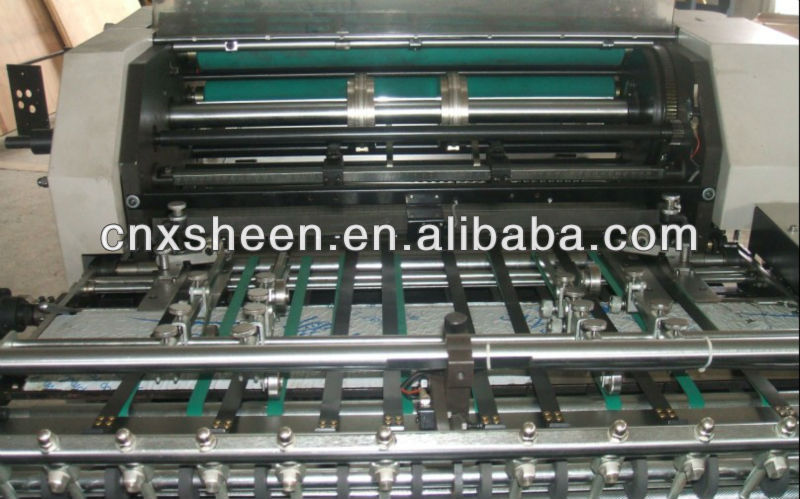

Machine details:
