heidelberg gto 52 offset printing machine,offset printing machine for sale,hamada offset printing machine

FOB Reference Price:Get Latest Price
1 Set/Sets 2 color offset machine with numbering & perforating (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Offset Printer
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
XSHEEN
Model Number:
XH256IIG-NP
Usage:
Paper Printer
Automatic Grade:
Automatic
Color & Page:
Two Colors
Voltage:
220V
Gross Power:
1.5KW
Dimensions(L*W*H):
2600x1045x1400MM
Weight:
1900kgs
product name:
2 color offset machine with numbering & perforating
offset printer producer:
xsheen technology
printing numbering machine:
2 colors
warranty:
offset printing presses manufacturer 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month 2 color offset machine with numbering & perforating
Packaging & Delivery
Packaging Details
offset printing presses manufacturer packing in wooden case
Port
Shanghai
Lead Time :
6 days

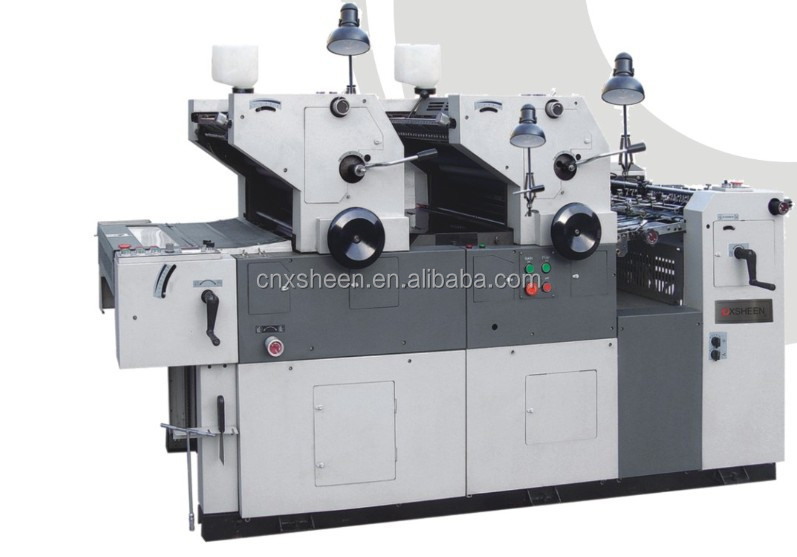

2 color offset machine with numbering & perforating

Product Description

Features of 2 color offset machine:

1) Capability: Inking device of each unite has 16 ink rollers including 3 ink form rollers, guarantee the high precise printing quality, and can print double color, which can improve the efficiency and reduce the cost

Advanced ink feeding system, consisting of 16 ink form rollers including 3 ink rollers, ensure top quality prints.

2) Easily operate: water supplying, ink supplying and platform pressing each unites can be finished at different lever with the same handle. Joint pressure of printing rollers is controlled with an electric eye, which is more reliable and easy to be regulated.

3) Accurate orientation: adopt front lay and double-side pull guide for orientations, also install with tune-up devices for feed table, its side lay, plate cylinder, and No.2 unit.

4) Adopt independent ink system and damping system, can freely adjust feeding, best meeting various demands of different printing matters, more suitable for color printings.

5) Presetting counter: automatically stop feeding paper once preset quantity task are completed.

6) Double detect device: detect double sheets and multiple sheets, and automatically eliminate double and multiple sheets.

Double turn-around function: ensure the sufficient dryness of ink demanding of special printing matter

7) Sprayer device: make spraying and printing run in synchronization, prevent printing matter from dirty

8)Centralized oil feed system: more convenient for maintenance.

9) Touch device: realize rapid loading and unloading plate, easier operation and better safety



Technical data of 2 color offset machine:

Model

XH247IIG/ XH247IIGNP

XH256IIG/ XH256IIGNP

Max. Paper size

470x365mm

560x390mm



Max. Printing area

450x345mm

550x380mm

PS Plate size

470x395x0.15mm

560x420x0.15mm

Rubber blanket size

466x415x1.95mm

560x454x1.95mm

Paper weight

28-250gsm

Paper Speed

2000-9000sheets/h

Ink roller

14 pcs in each printing unit(3pcs forme rollers in each unit)

Dampening roller

4pcs in each printing unit (2pcs forme rollers in each unit)

Power

220V/50HZ (Single Phase)

Power of main motor

1.1KW

1.5KW

Power of air pump motor

1.1KW

Power supply

220V 50HZ Single phase

Weight

1200kg

1400kg

Over dimension

2.6x1.06x1.5m

2.6x1.15x1.5m

Numbering Capacity

Lateral: 7rowx7column=49

Vertical: 5rowx8column=40

Lateral: 7rowx8column=56

Vertical: 5rowx10column=50

Standard configure:

1.Static electricity eliminator

2.centralized lubricating system

3.Weko power sprayer

4. Coding supporter :4pcs on numbering part.

5.Code drawer::4 pcs

6.Resin plate cylinder:1pc

7.Perforating knife: 1 pc
